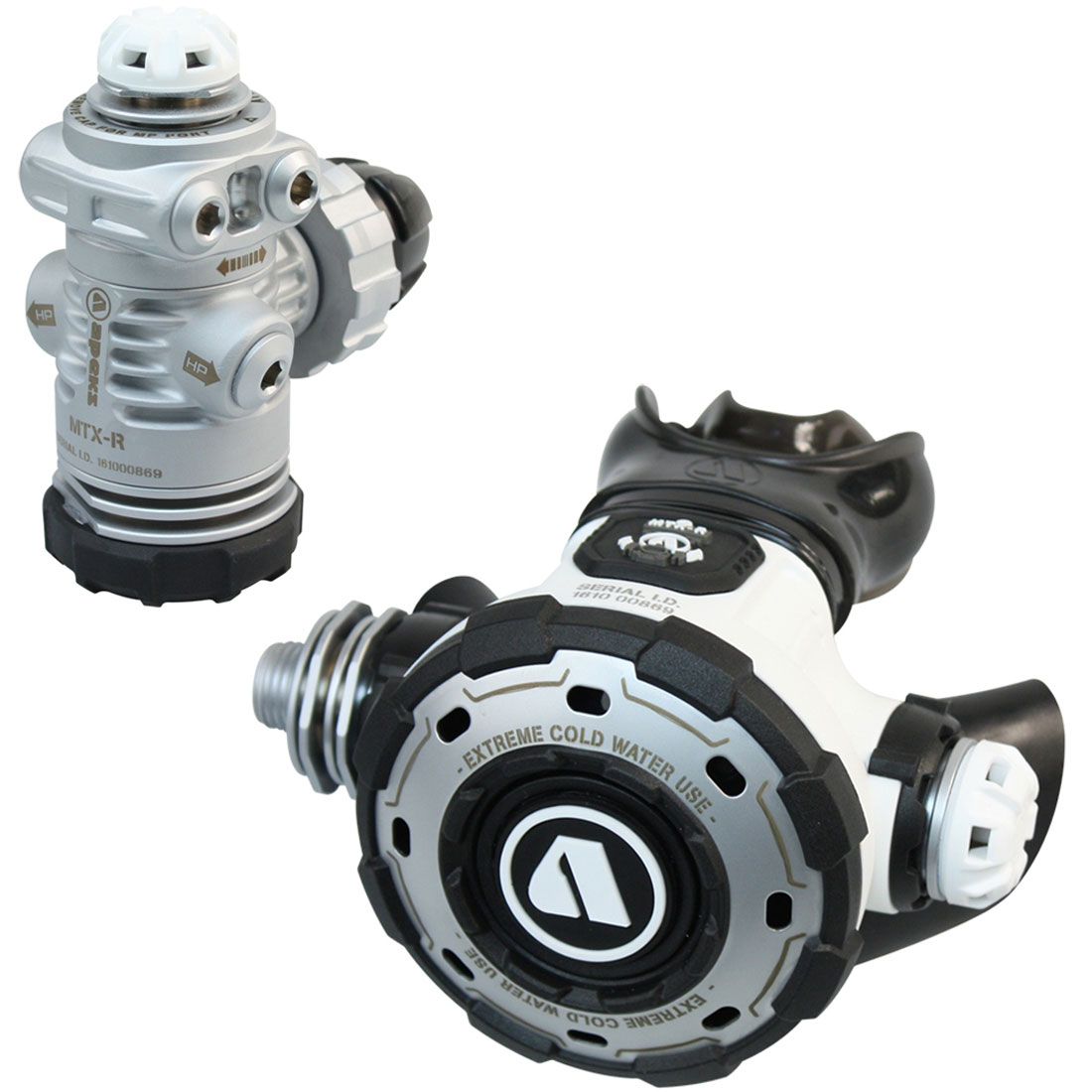

Apeks MTX-R DIN Regulator

The MTX-R is based on the MTX military regulator and is a super tough, rugged, high performance, go anywhere regulator. The MTX-R has excellent cold water performance and has a greatly reduced risk of free flow. This has been achieved by improving several areas, including an innovative endcap solution that solves a long-challenged reality for cold-water divers of first stage freeze up. This regulator is designed to meet all aspects of the NEDU (Navy Experimental Dive Unit)military requirements for diving in very cold water. The MTX-R is highly reliable and also very easy to service out in the field.

FEATURES

Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth
Compact environmentally dry sealed diaphragm system completely eliminating the maintenance issues associated with silicone, oil or grease filling
Break through, innovative over-moulded first-stage endcap & environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage
Easy to grip DIN hand-wheel or over-moulded yoke hand-wheel, only requires one hand to release
DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively
5 x 3/8” UNF (Unified National Fine) medium pressure ports
2 x 7/16” UNF high pressure ports
The 5th 3/8” UNFmedium pressure port includes a protective bumper when not in use
Forged first stage body with heat exchanging ribs for maximum thermal performance
Angled HP ports for optimal hose routing and fitting of transmitters
Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation
Ribbed diaphragm clamp for improved heat exchange in cold water conditions
Double swivel hose for greater freedom of movement and comfort
Tested for Octopus use - EN250A to 60 meters cold water
Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection
Simple to use with no dive adjustment controls and reduced chance of free flow occurrence, pre-settable cracking effort or venturi control by an Apeksapproved qualified technician
High performance pneumatically balanced lever operated poppet valve
Large, diver friendly self-flushing controllable purge button
Front cover with over-moulded elastomer incorporates a formed chrome plated brass plate improving durability of the second stage
Large protective elastomer bumpers on the side and on the top to protect the second stage from impacts and scratches in the most vulnerable places
Reversible second stage for either a left or right hand gas supply configuration
A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water
Removable bungee necklace with lock out feature for retaining second stage in the mouth of an unconscious diver during rescue and to assist with jaw fatigue
Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees
Comfo-bite mouthpiece
Flexible nylon braided hose has better cold water performance than traditional rubber hose
Simple service kits
Easy to service
Colour coded octopus hose
